Custom SoHo Server Rack with Ubiquity Unifi
Networking Hardware
I've just updated my SoHo network set-up from:
- UniFi USG 3P
- UniFI USW-24-PoE 250 Switch
- UniFi Cloud Key G2 Plus
- 2x UniFi AC Pro Access Points
- 3x UniFi G3 Dome Cameras
- 1x UniFi G3 Flex Camera
- UniFi Dream Machine Pro
- UniFi 24 Port PoE GEN2 Switch
- 2x UniFi NanoHD Access Points
- 3x UniFi G3 Dome Cameras
- 1x UniFi G3 Flex Camera
- 1x UniFi G4 Bullet Camera
It's using around 10W less power than the previous configuration and its quieter being passively cooled. I've added a solar powered extraction fan, and a separate powered temperature monitoring module that will active two intake and one exhaust fan if needed.

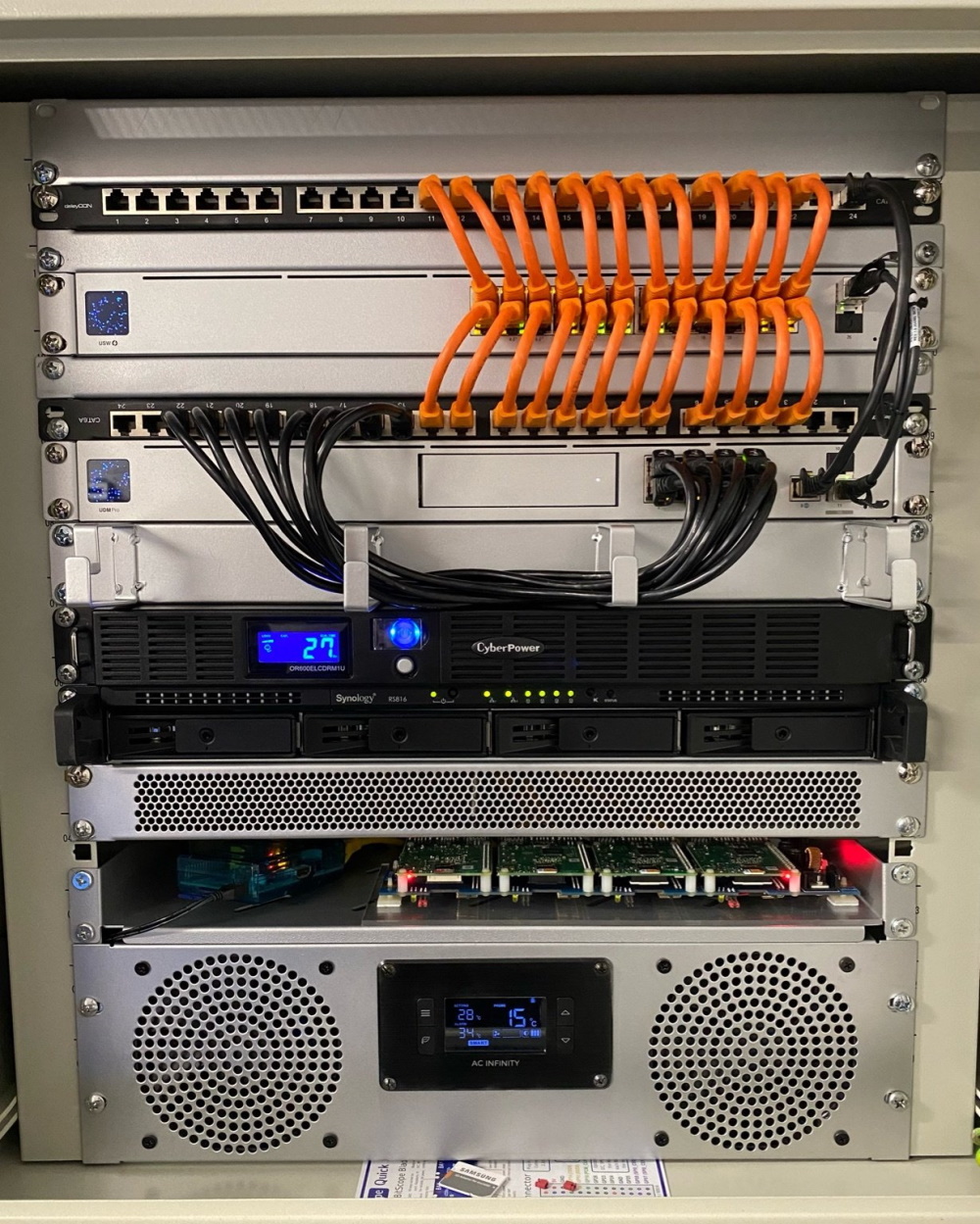

I'm also running the following rack mounted equipment in there:
- Synology RS816 NAS Drive
- BitScope Quattro Raspberry Pi blade
- Cyberpower 600VA UPS with Remote Management Adapter
I'm running six Raspberry Pis, ranging from an original Model B hosting FlightRadar24, an EmonPi power monitor on a Model 3B, and on the BitScope blade I have a model 4B, model 3B plus, model 3B and a model 2B all running Docker and various containers hosting some applications 24x7 along with being a test bed for testing some simple micro-services prototypes.

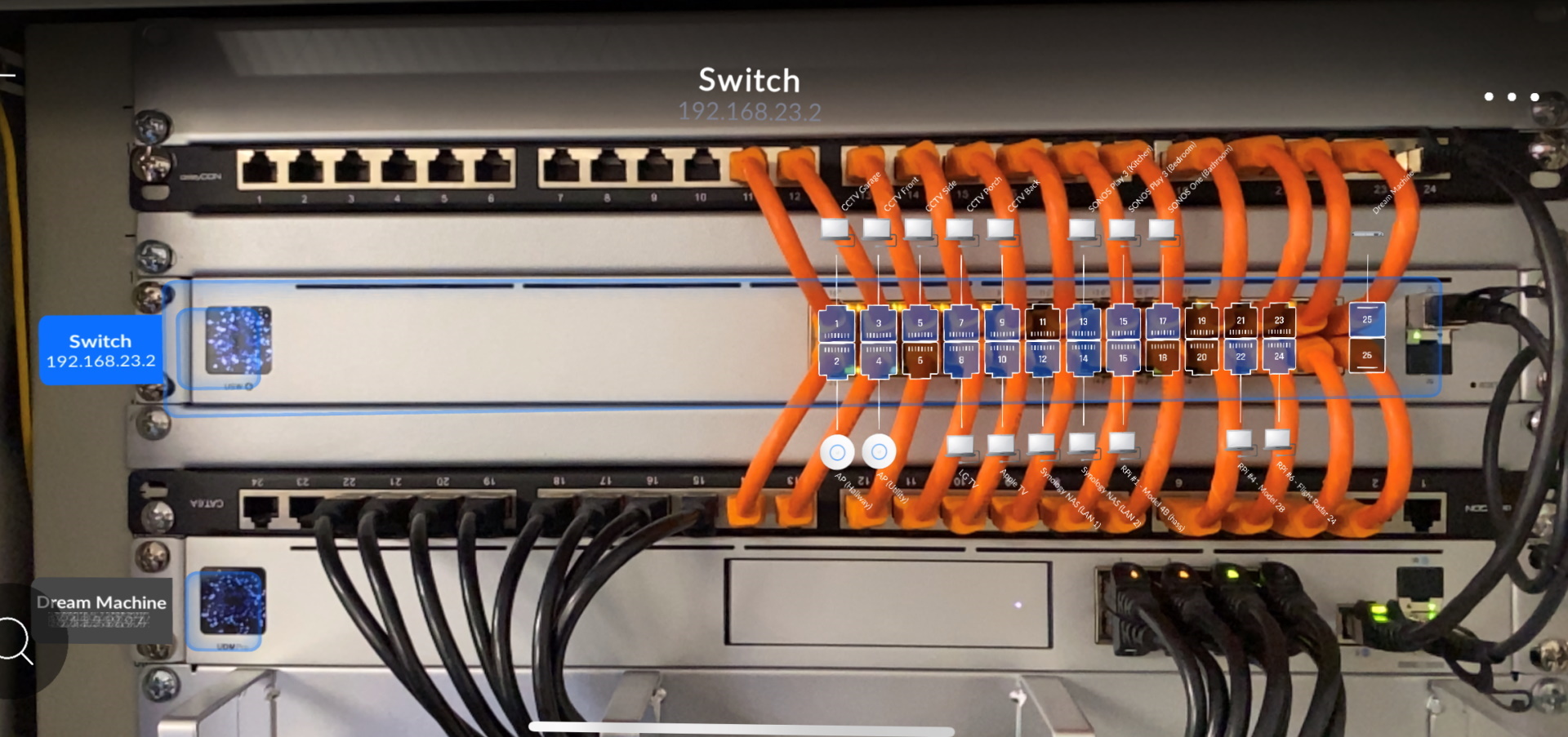

Below is a quick demonstration of the UniFi AR feature:
